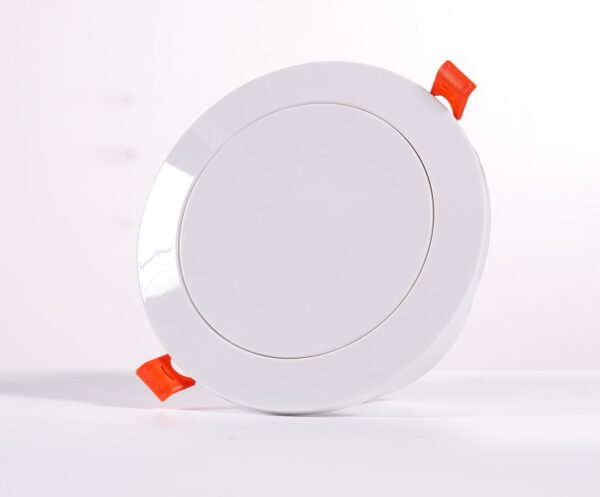

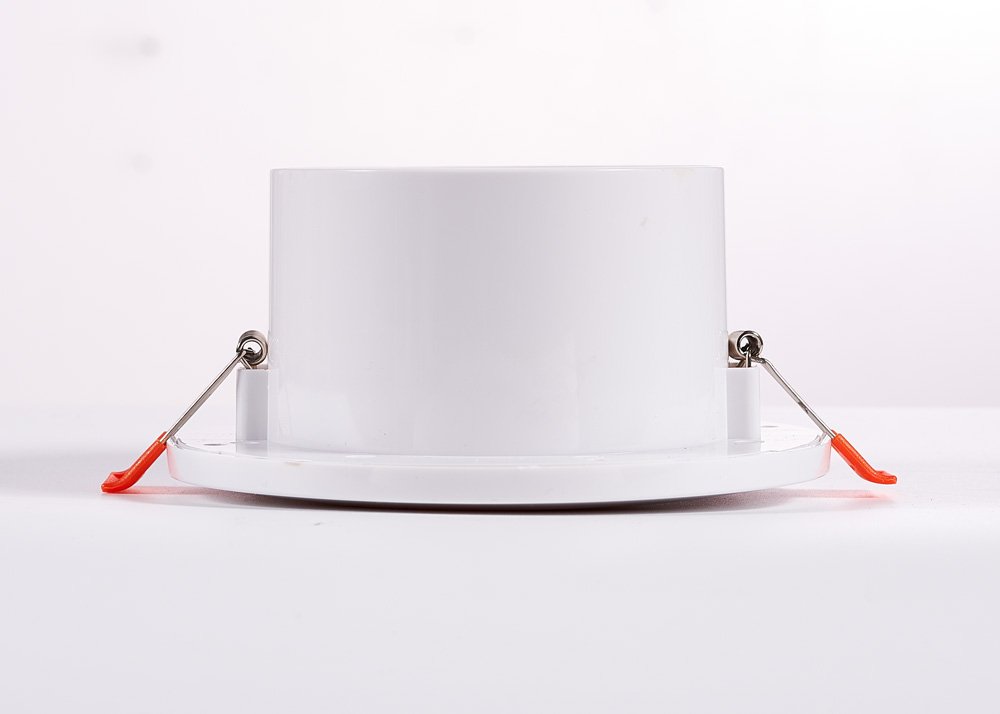

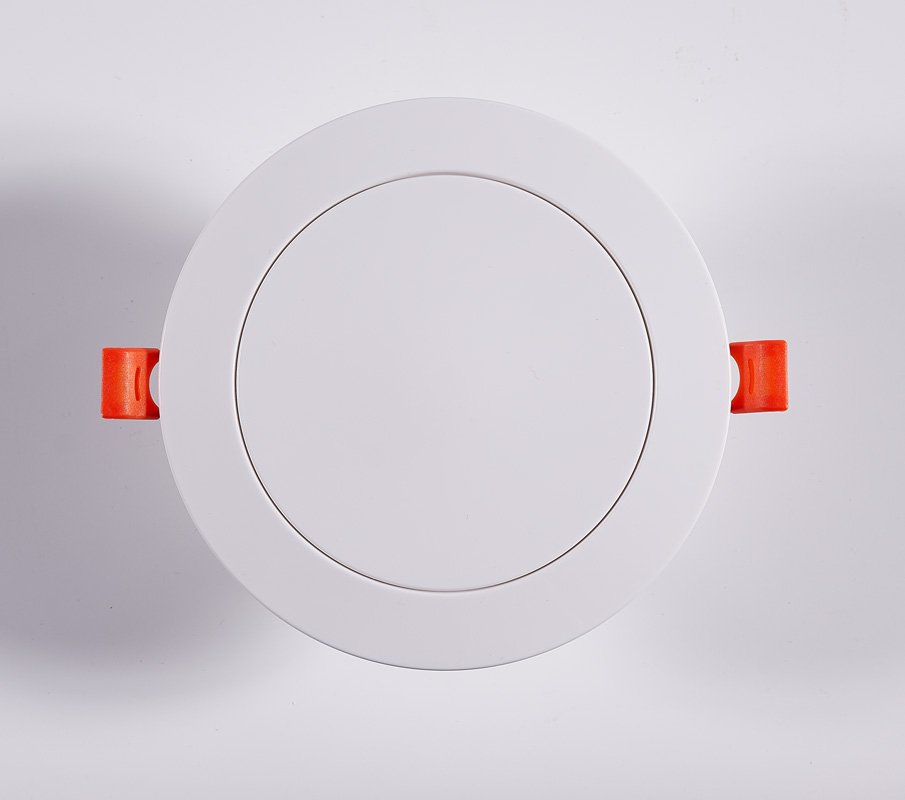

Circular disc diffuser (spring fasteners insect-proof mesh) through adjustable airflow, insect-proof design and high adaptability, widely used in commercial, industrial and special hygiene requirements. Its core advantage is to balance functionality, aesthetics and easy maintenance to meet the needs of diverse air conditioners.
Product parameter
| Product Name | Materials | specification | Size （Nozzle mouth * face cover * height） | Packing quantity |
Circular disc tuyere (spring buckle style with insect-proof net) | ABS Plastic | 75# | 72*117*70 mm | 100 PCS |
| ABS Plastic | 80# | 72*117*70 mm | 100 PCS | |
| ABS Plastic | 100# | 96*140*70 mm | 100 PCS | |
| ABS Plastic | 125# | 120*165*70 mm | 60 PCS | |
| ABS Plastic | 150# | 146*190*75 mm | 60 PCS | |
| ABS Plastic | 200# | 196*240*85 mm | 30 PCS |
Product description
Functional characteristics | 1、Uniform air supply： The circular disc diffuser is designed to evenly spread the air flow into the space by rotating the disc-like surface cover, avoiding local supercooling or overheating. The height of the cover can adjust the air output of the tuyere to adapt to different needs. |
| 2、Pest control design： The insect-proof net design of spring buckles effectively blocks insects and dust from entering the air duct to ensure clean air supply, especially suitable for places with high air quality requirements. | |
| 3、Easy installation and disassembly： The inner core and outer frame adopt a separate structure, with a spring fastener design, which is convenient for users to quickly disassemble, clean or replace the insect protection net, reducing maintenance costs and time. | |
| 4、Highly adaptive and decorative： Support customization, bright surface, suitable for different decoration styles. At the same time, it can be used with the circular air volume regulating valve to achieve accurate air volume control. | |
| Main use | 1、Air supply at the end of the air conditioning system： For central air conditioning or fresh air system outlet, to achieve uniform distribution of warm and cold air. |
| 2、Noise sensitive places： Such as hospitals, broadcast studios, libraries, etc., their design can reduce noise interference. | |
| 3、High hygiene standard scenario： Such as food processing plants, laboratories, etc., insect-proof net design can prevent pollutants from entering. | |
| Application scenario | 1、Commercial and public buildings： Such as large shopping malls, hotels, theaters, conference centers, etc., using the characteristics of its cover can be rotated and continuous air supply characteristics, covering a wide space. |
| 2、Medical and educational institutions： Hospitals, schools, classrooms and other areas that need clean air and avoid direct blowing. | |
| 3、Cultural and recreational facilities： Concert halls, museums, etc., combine decorative and functional Spaces. | |
Circular disc diffuser (spring fasteners insect-proof mesh) through adjustable airflow, insect-proof design and high adaptability, widely used in commercial, industrial and special hygiene requirements. Its core advantage is to balance functionality, aesthetics and easy maintenance to meet the needs of diverse air conditioners.
